IPX7 IPX8 10m Submersion Test Machine , Containable 350L Water Immersion Tank
Generl specifications:
| Outer dimension | Approx W 800×D 950×H 1750 (mm) |
| Pressure accuracy | 1 kPa |
| Power supply | 220V/50Hz |
| Power | 100w |
Test Principle4:
IPX8 Test: By filling the tank with compressed air and increasing the water surface pressure, the pressure in the water increases synchronously, thereby simulating different water depth environments.
Features:
- The device is equipped with a pressure sensor, which can display the internal pressure change synchronously.
- Cylinder lifting devices are installed on both sides of the tank, so that the lid can be lifted and lowered smoothly.
- The tank cover is fastened with stainless steel can lid flange fasteners, and the seal is firm.
- Timing is performed by a time relay, and timing starts after the internal pressure reaches the set value.
- After the test is complete, the device automatically vents the pressure.
- The tank cover is connected with a mechanical safety valve. If the set pressure exceeds the set pressure, the safety valve will release the pressure directly to ensure the safety of users.
- A hook is welded inside, which is convenient for users to fix and take samples.
- If the user needs to provide an external power supply for the sample, we can open a hole in the lid and provide a locking device (wire diameter <15mm)5.
The Main Technical parameters:
| Item | Specification |
| Thickness of lid | 10 mm |
| Flange thickness | 15 mm |
| Tank thickness | 2 mm |
| Equipment net weight | Approx 100 kg |
| pressure range | 0-100 kPa |
| Water depth(maximum) | 10 meters |
| Adjustment method | Automatic adjustment |
| Pressure accuracy | 1 kPa |
| pressure error value | ±2 kPa |
| Set pressure of safety valve | 0.15 Mpa(150kPa) |
| Testing time6 | 0-999 s/min/h |
| power supply | 220V/50Hz |
| power | 100W |
Installation requirements:
- Aisle: Before the equipment enters the factory, please confirm that the spacel in the aisle, elevator, laboratory, etc. of the factory area is sufficient for the equipment to pass through.
- Water source: Please prepare clean water source.
- Air source: Please prepare a compressed air source with an output pressure of 0.6-0.8Mpa7.
- Power supply:220V/50HZ, 100w；please check whether it is compatible.
- Site space:≥W1300×D1300×H2500mm
- The room needs to reserve a drain, and the bottom of the machine can be connected to a water pipe for drainage.
Remark:
1 The pictures in this document are for customer reference only, and there may be color differences between the actual model and the pictures.
2 This document only lists some test standards, which does not mean that other test requirements and standards cannot be conducted. Welcome to communicate and discuss with us.
3 One test only at the same time. The next project can be only carried out after the current test is completed. In addition, we can provide multi-functional customized test solutions according to user requirements.
4 The formula of the corresponding relationship between pressure and water depth: P=9.8d (Unit :kPa,m).
5 Please wear insulating gloves during power-on test to avoid personal safety problems.
6 The time unit of the test can be freely selected, and it can be adjusted through the time relay before starting the test.
7 The user needs to prepare an air compressor in advance (recommended gas storage capacity > 60L). If you need us to buy it on your behalf, you need to explain in advance.
8 The photos may not match the actual ones, and are for user reference only.
Product image:

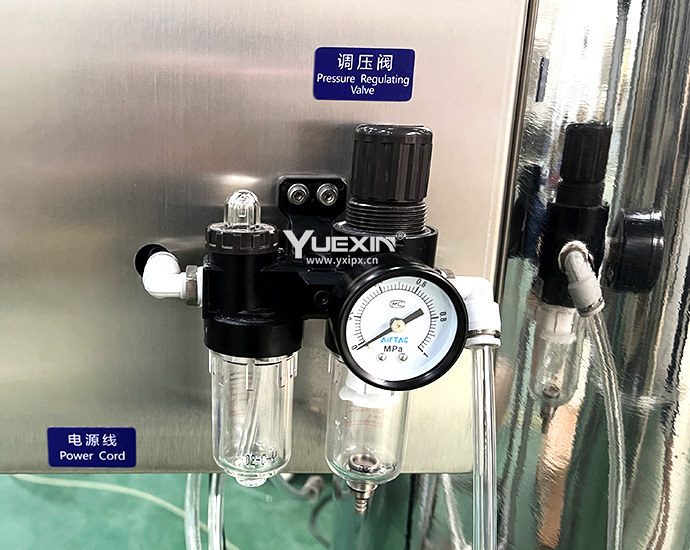

pressure regulating valve
